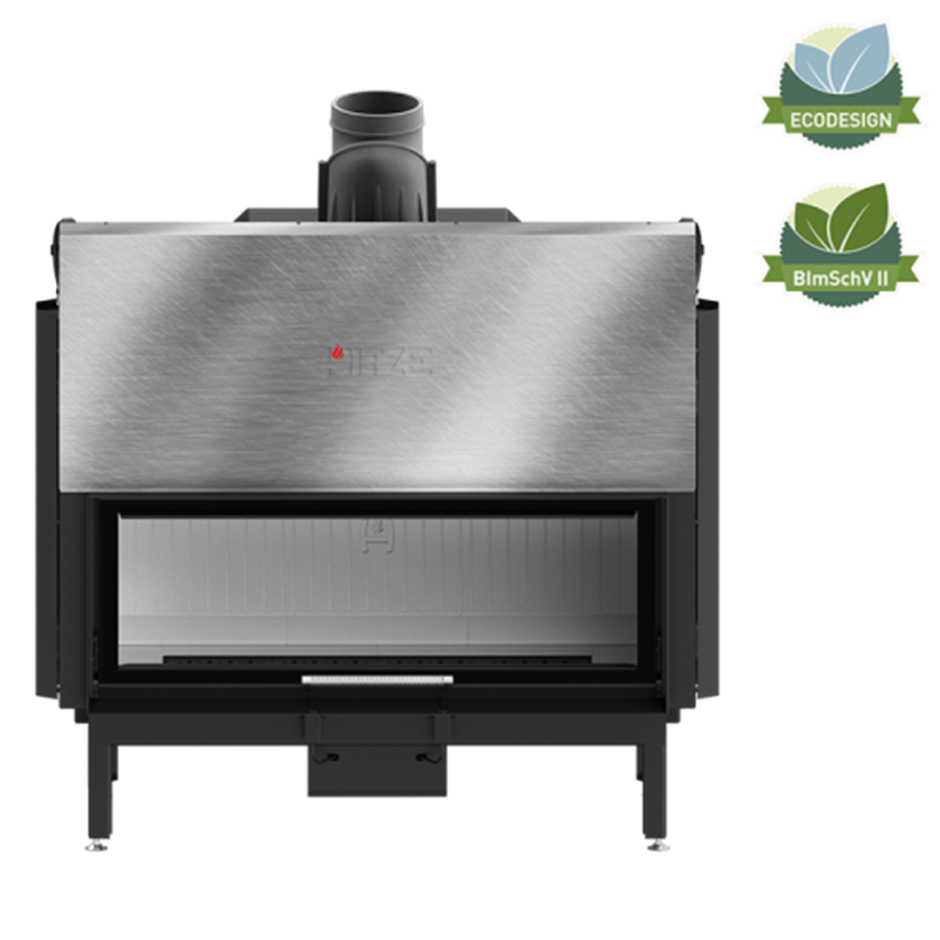

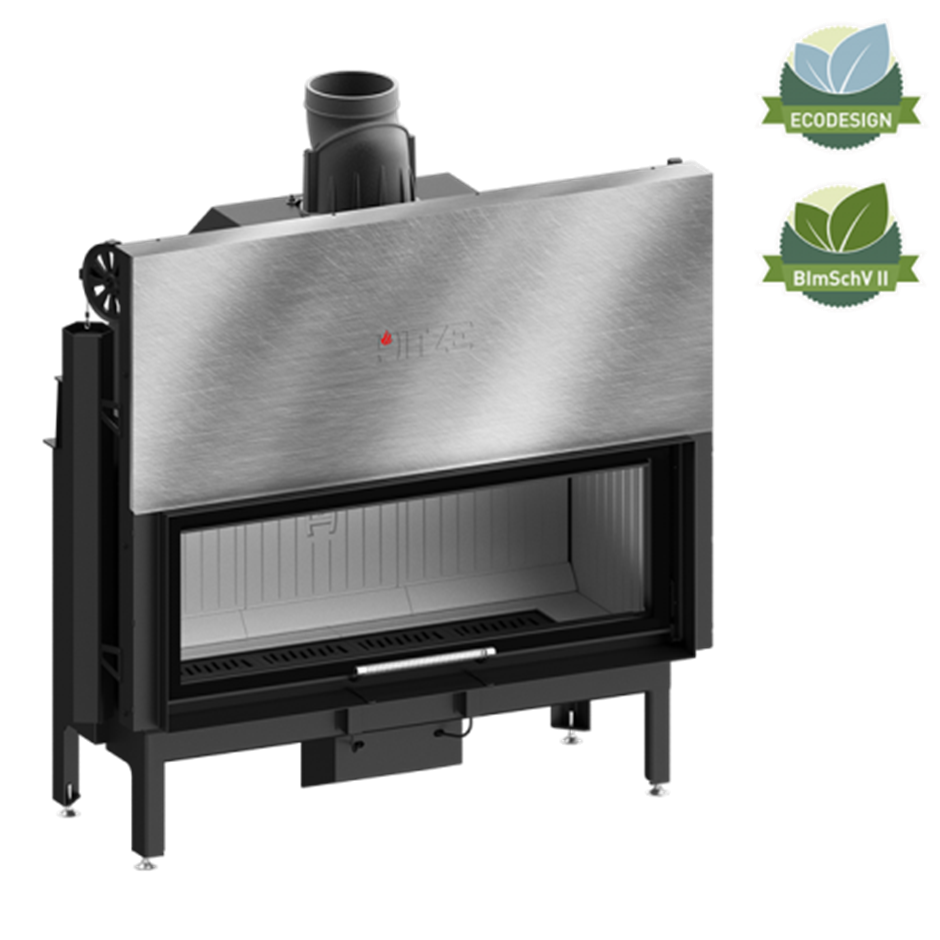

HITZE ARDENTE 120x43.G

Insert with an enlarged, deep rectangular combustion chamber giving the possibility of large loads.
Tiltable cast iron grate for convenience in cleaning the hearth.
Decorative heat-resistant DECOR ELEGANCE glass as standard (operating temperature up to 800 degrees).
It is possible to order dedicated grilles (powder-coated steel in the color of the cartridge).
A cast-iron chimney with 360-degree adjustment.

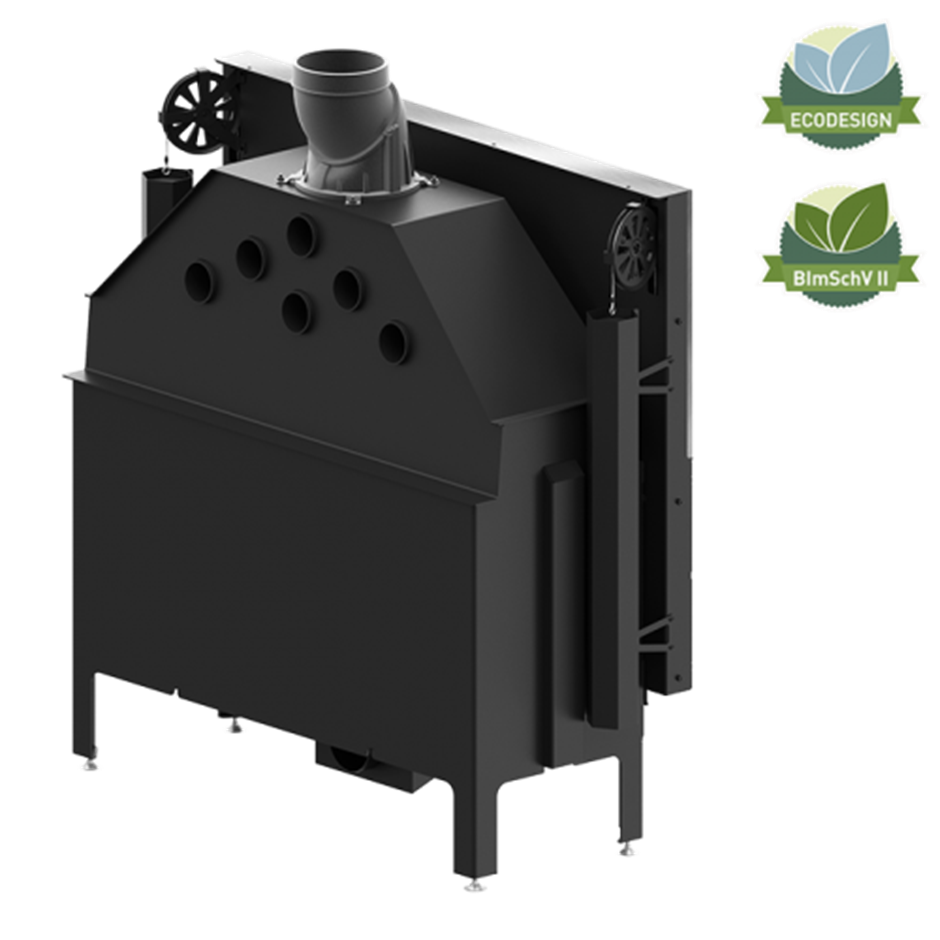

The supply of outside air is realized through a single spigot and a plenum box distributing air to individual primary and secondary air intake pipes with integrated dampers. With this solution, the cartridge needs only one pipe supplying air from the outside.
The flue gas afterburning system is located in the upper part of the combustion chamber, above the grate.
Clean windshield system: an air guide along with an air curtain.
Steel doors made of a special profile that guarantees rigidity and resistance to high temperatures.
The elements of the cartridge are produced using modern CNC equipment (2D laser, 3D laser, press brakes).
The shell of the insert is made of P265GH grade boiler steel according to EN 10028-2.
Meets BImSchV II, ECODESIGN standards.
In accordance with the requirements of the Ekodesign Directive within the EU member states: "This product must not be used as a primary source of heating".
